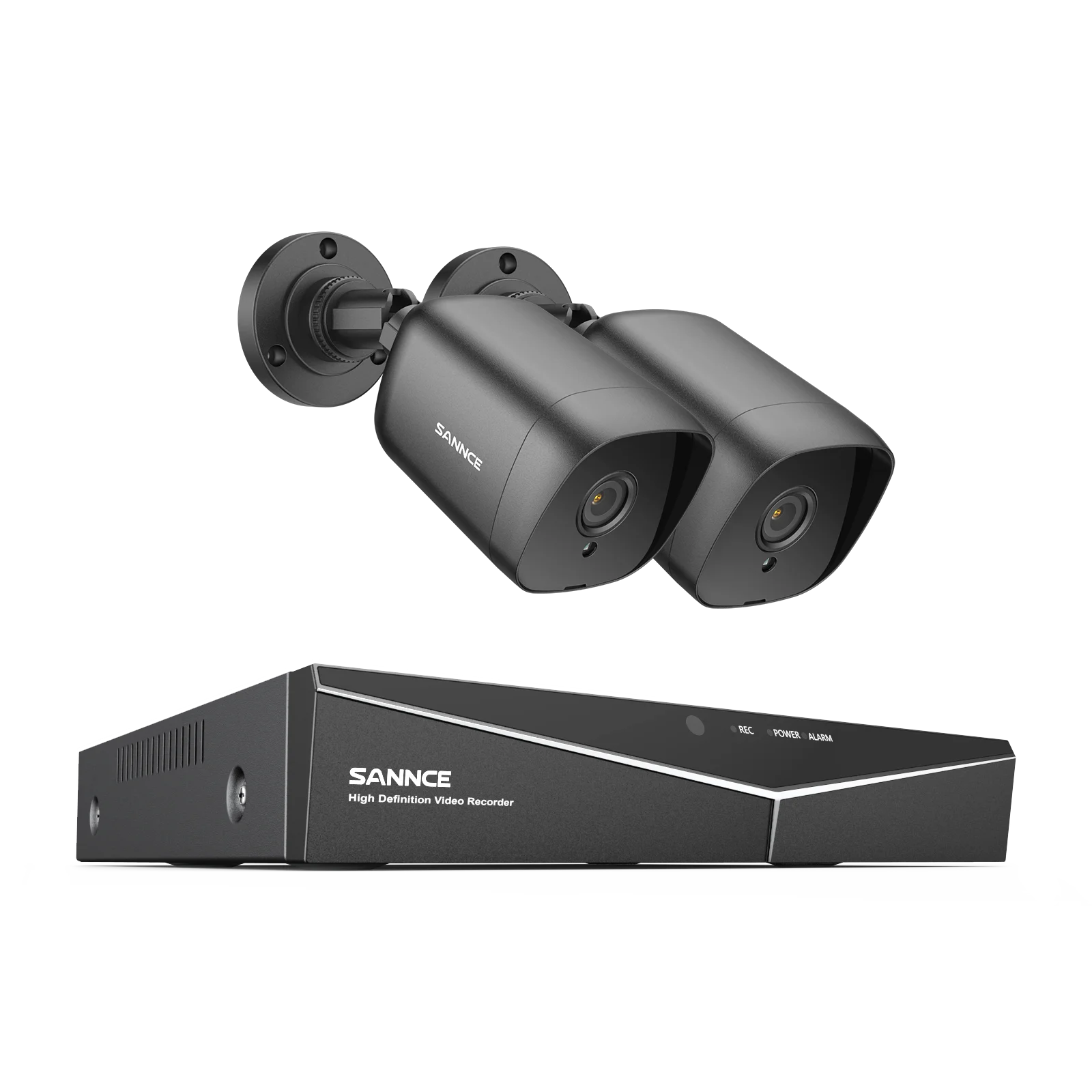

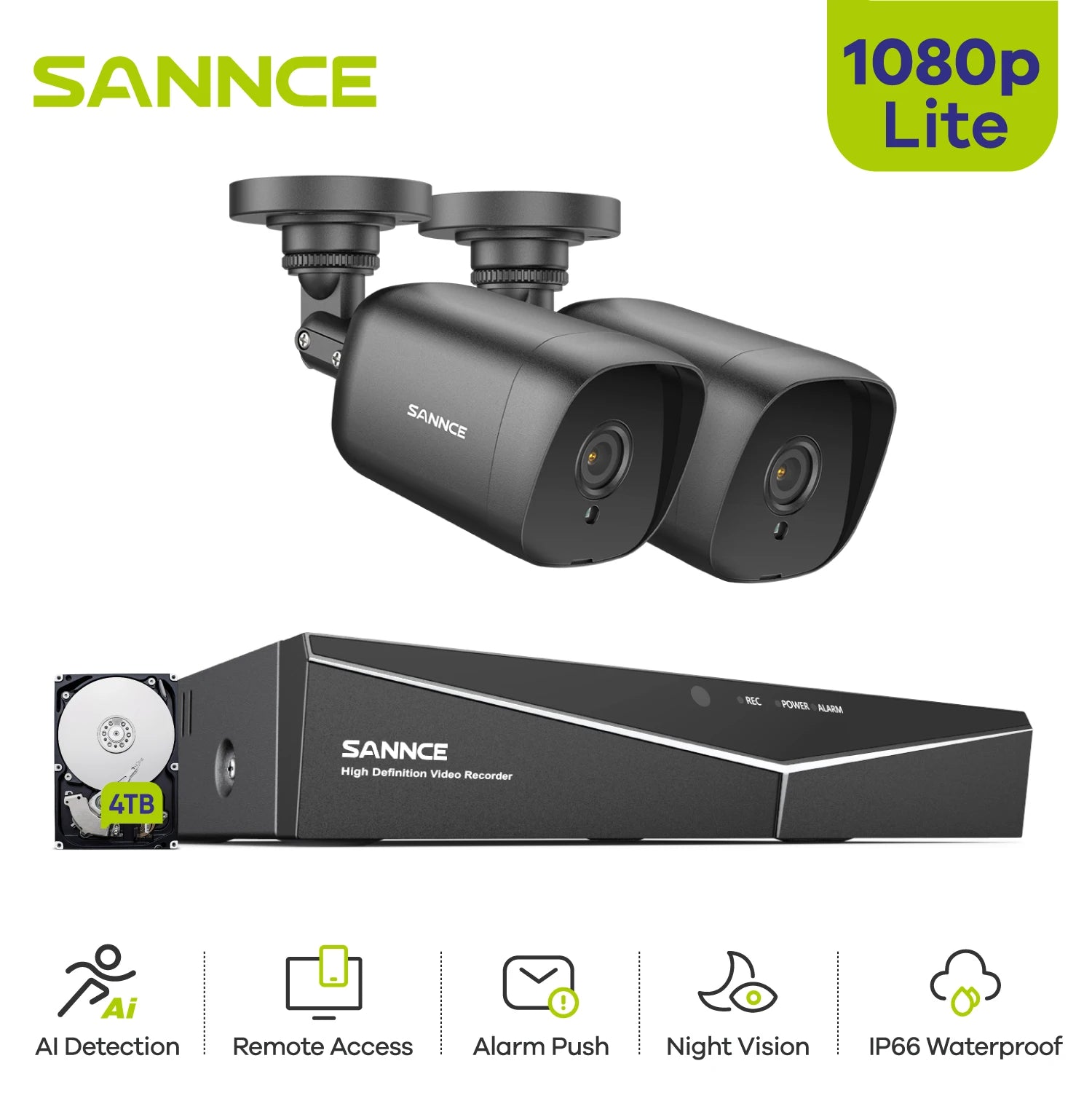

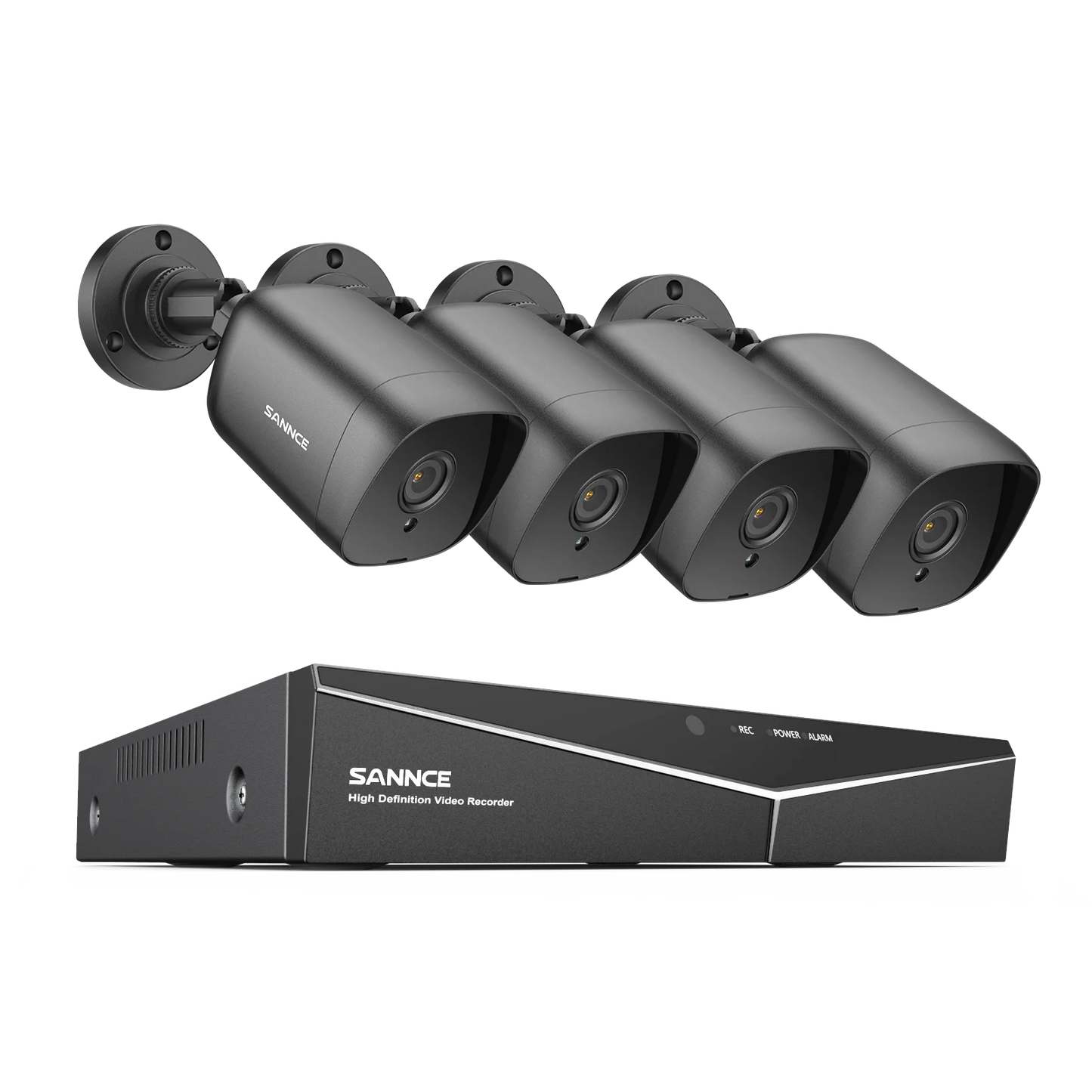

SANNCE 4 Channel DVR CCTV System With 2MP Outdoor Cameras
SANNCE 4 Channel DVR CCTV System With 2MP Outdoor Cameras
Couldn't load pickup availability
Capture clarity and control with a SANNCE 4‑channel DVR CCTV system that delivers crisp 1080N recording and flexible camera options for your home or small business.
- Versatile video inputs: supports AHD, TVI, CVI, CVBS, and IP feeds, with HDMI and VGA outputs to match your monitor or TV.
- Easy networking and storage: 1 SATA up to 8TB, automatic device linking with one‑button setup, plus remote access for iOS and Android.
- Two weatherproof outdoor cameras: 2MP bullets with EXIR 2.0 night vision up to 30m, IP66 rating, and a 3.6mm lens for broad coverage.
- Smart features and playback: motion/event recording, time/calendar search, network backup, and multi‑browser/VMS PC access for flexible monitoring.
DVR | ||
Video & Audio |

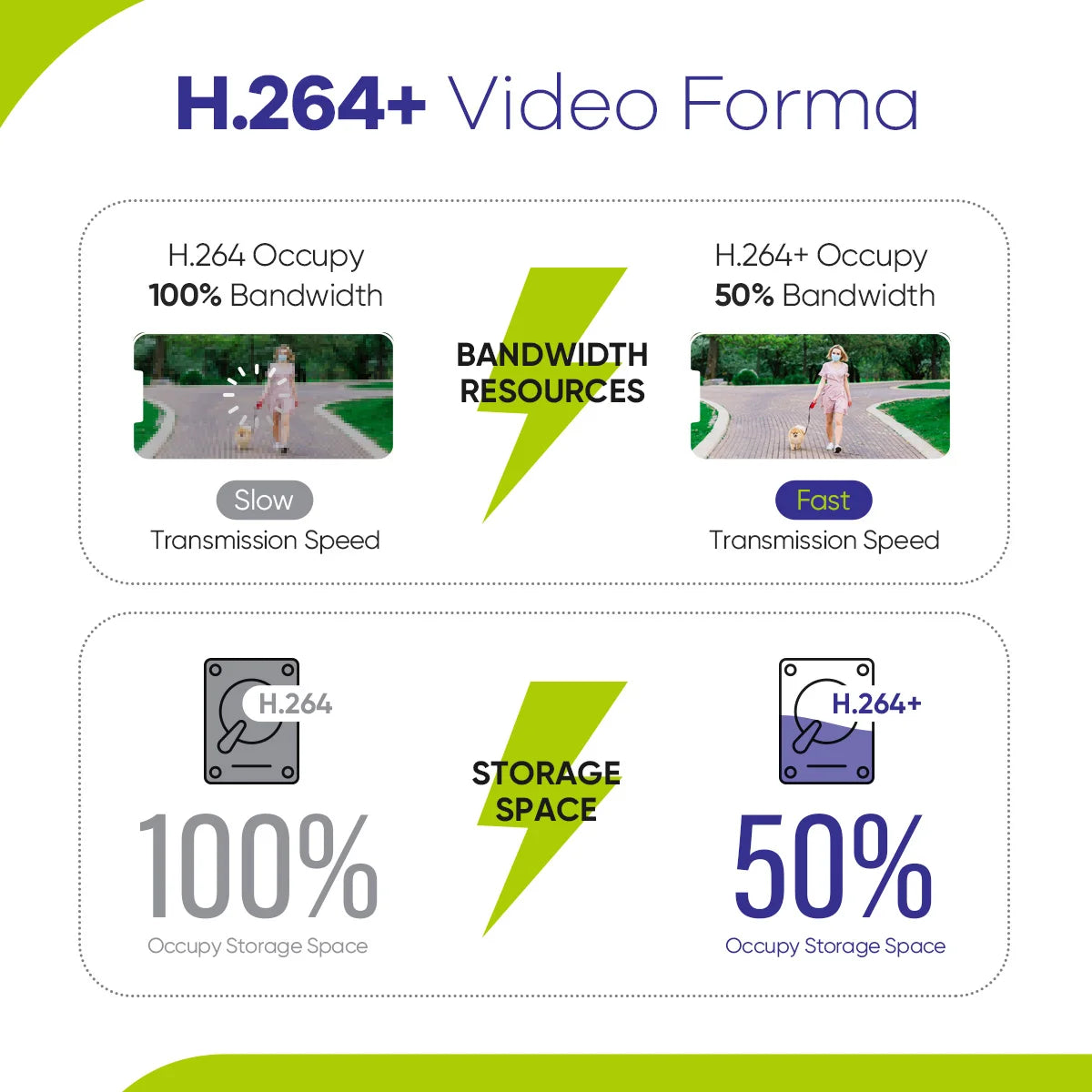

Codec |
H.264+ |
Video input |
8*BNC |
|
HDMI output |
1*HDMI (MAX:1080P) |
|
VGA output |
1*VGA (MAX:1080P) |
|
Audio I/O |
1/1 |
|
Encode |
8*1080N@15fps |
|
Decode |
4*1080N@15fps |
|
Multi-mode |
Analog: 8*1080N@15fps;4*5M-N(21fps） |
|
Hybird: 8*1080N@15fps(analog)+2*1080P | ||
IP: 16*1080P；16*5MP | ||
Playback |
4CH (Analog mode) |
|
Compression |
G.711a |
|
Intercom |
Support |
|
Hard Drive |
HDD |
1*SATA interface |
HDD Capacity |
Up to 8TB Capacity |
|
Management |
Record mode |
Manual>Motion detection>Schedule |
Inquire mode |
Inquire by Time/Calendar/Event/Channel |
|
Storage mode |
Sata HDD |
|
Backup |
Network, USB storage |
|
External Interface |
Ethernet port |
1*10/100Mbps Ethernet port, RJ45 port |
Alarm I/O |
/ |
|
PTZ control |
/ |
|
USB Port |
2*USB2.0 ports |
|
General |
Power supply |
12V/2A |
Consumption |
<10W(Without HDD） |
|
Temperature |
0℃- + 55℃ |
|
Humidity |
10% -90% RH |
|
Dimension |
255(L)* 236mm(W)* 44mm(H) |
|
Weight |
Around 1KG |
|
HD Camera | ||

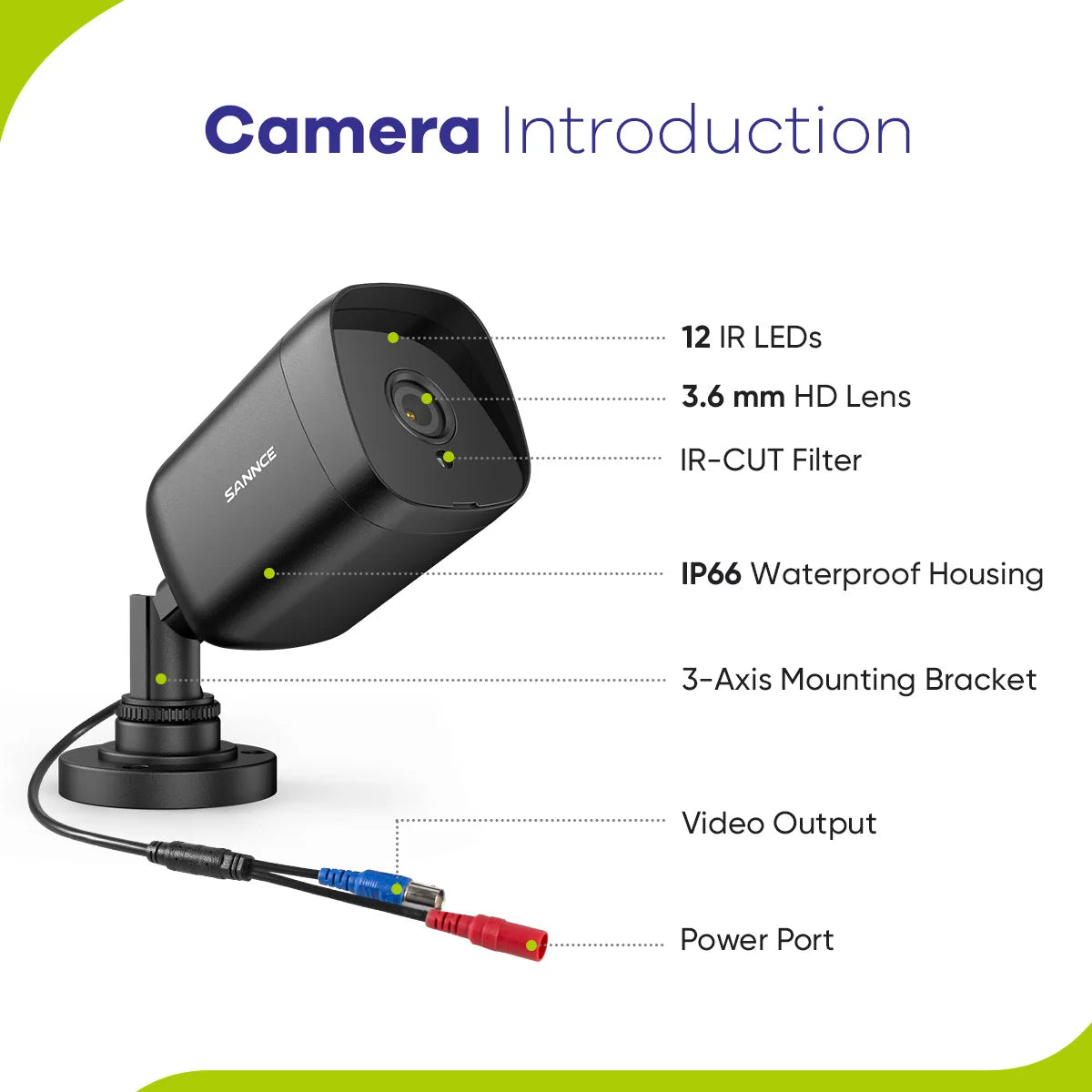

Camera |
Video Resolution |
HD 1080P |
Signal system |
PAL/NTSC |
|
Image sensor |
Progressive Scan CMOS |
|
Lens |
3.6mm |
|
Min.Illumination |
0.02Lux@(F1.2 AGC ON),0Lux with IR on |
|
Angle of View |
70° |
|
Number of Infra-Red LEDs |
12 |
|
Night Vision Distance |
Up to 100ft/30m |
|
DNR |
DNR |
|
Wide Dynamic Range |
Digital WDR |
|
IR Cut Filter |
Yes |
|
Video Output |
HD BNCx1 |
|
General |
Housing |
Plastic |
Color |
Black |
|
Operating Power |
DC12V |
|
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP66 |
|
Dimension (L x W x H) |
6.49” x2.36” x 2.36” / 165 x 60 x 60mm |
|
Weight |
0.33lbs / 150g |
|
